¶ LiveBench for the Evaluation of Cascade SiT6503EB (SiT9514x chip designs)
¶ Contents
Introduction to Cascade SiT6503EB (SiT9514x designs)
- Lab Setup
- Key Features
- Applications
- Test Outputs
- Document links
¶ Introduction to Cascade SiT6503EB :
The SiT6503EB Programmer is designed exclusively to configure and burn programmable SiT9514x Cascade Platform™ units SiT95141, SiT95145, and SiT95148 single-chip MEMS Clock Generator, Jitter Cleaners and Network synchronizer applications on Lab On the Cloud solution. Select the Cascade SiT9514x Evaluation Time slot for Live phase noise testing.
¶ SiT95141
¶ Low Jitter, 10-output MEMS Clock Generator :
The Cascade Platform™ SiT95141 is a single-chip MEMS clock generator optimized for the highest level of clock tree integration. This clock-system-on-a-chip (ClkSoC) consolidates multiple clock ICs and oscillators into a single device. Its low-noise quad-PLL architecture and programmable output drivers provide up to 10 differential or 20 LVCMOS low-jitter clock outputs. It supports 4 additional clock inputs with Frac-N dividers, enabling virtually any input-to-output frequency translation configurations from 8 kHz to 2.1 GHz.
Documentation: Click Here
¶ SiT95145
¶ Low Jitter, 10-output MEMS Jitter Cleaner :
The Cascade Platform™ SiT95145 is a single-chip MEMS jitter cleaner that provides the highest level of clock tree integration and consolidates multiple clock ICs and oscillators into a single device. Its low-noise quad-PLL architecture and programmable output drivers provide up to 10 differential or 20 LVCMOS low-jitter clock outputs. It supports 4 additional clock inputs with Frac-N dividers, enabling virtually any input-to-output frequency translation configurations from 8 kHz to 2.1 GHz.
Documentation: Click Here
¶ SiT95148
¶ Low Jitter, 11-output MEMS Network Synchronizer :
The Cascade Platform™ SiT95148 is a single-chip MEMS network synchronizer optimized for IEEE 1588 and time synchronization applications. The device comes with 4 independent time domains, 1 MHz to 4 kHz programmable loop bandwidth, low wander mode, and fastest hitless switching. Its low-noise quad-PLL architecture and programmable output drivers provide up to 10 differential or 20 LVCMOS low-jitter clock outputs. It supports 4 additional clock inputs with Frac-N dividers, enabling virtually any input to low-noise output frequency translation configurations from 8 kHz to 2.1 GHz.
Documentation: Click Here

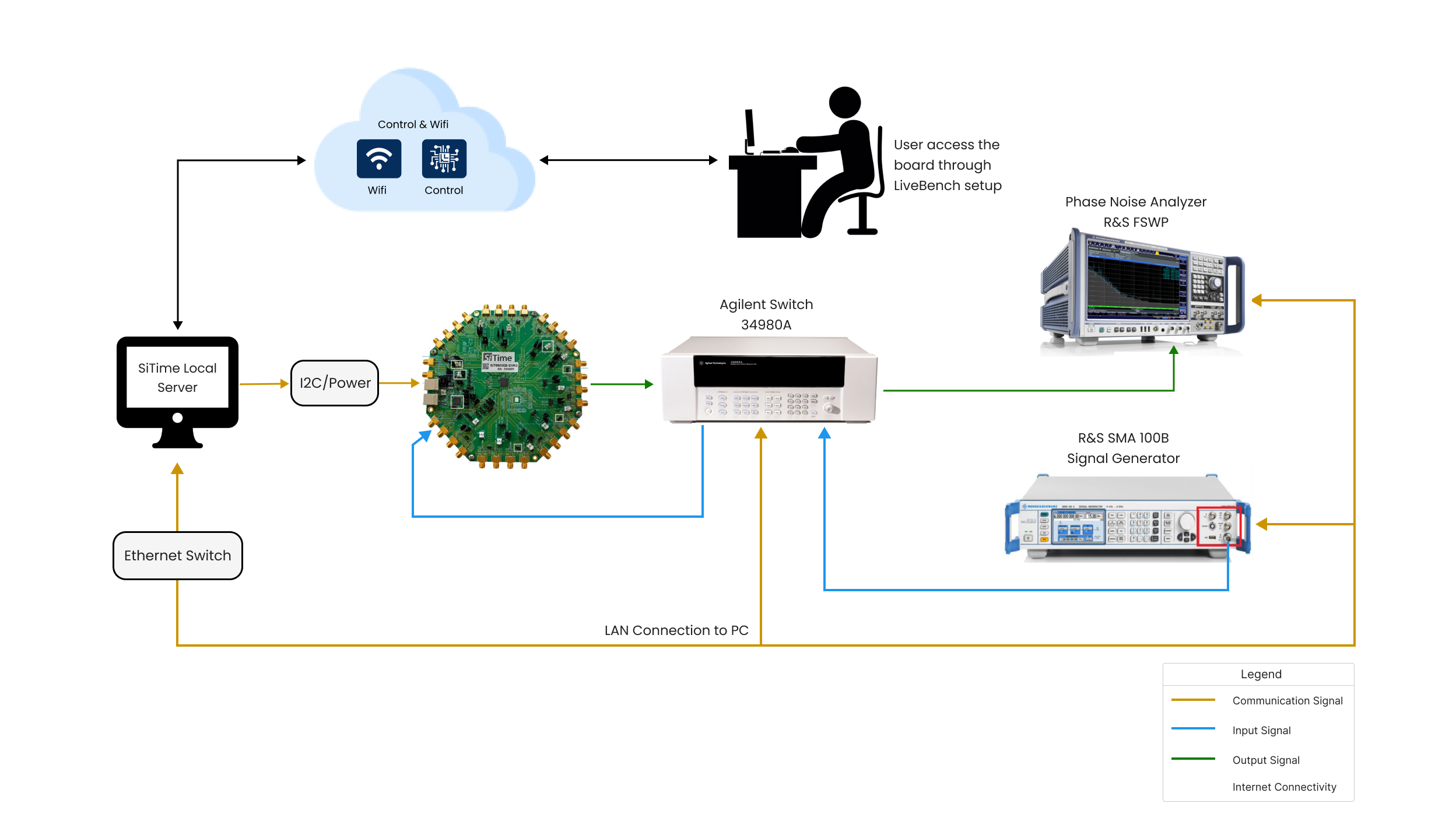

¶ Lab Setup :
¶ Key Features :
- No jitter degradation because of noise coupling onto a crystal interface
- Always reliable startup even at cold temperatures and in other harsh environmental conditions
- No activity dips/frequency jumps inherent with quartz
- Always accurate clock synthesis by eliminating crystal capacitive mismatch
- 10x more resistant to vibration and board bending
- No crystal capacity matching issues, always accurate frequency synthesis
- No noise coupling onto crystal circuits guaranteed jitter
- Resistant to vibration and board bending, anywhere PCB placement
- Programmable loop bandwidth (1 Hz to 4 kHz)
- Low wander mode using precision TCXO for clock recovery and OCXO for holdover
- Fastest hitless switching (sub 50 ps phase build-out)
¶ Applications :
- Sync-E, ITU-T G.8262
- Boundary clock, ITU G.8273.2
- Slave clocks, ITU G.812, G.813
- IEEE 1588 ▪ 802.3AS AVB, TSN
- Broadcast video
- 5G RRU and small cells
- 10/100/200/400G Ethernet
- OTN clocking for framers, mappers, and processors
- FPGA and server clocking
- Test and measurement
¶ Test Outputs :
- This design provides a provision for users to analyze the jitter and phase noise in signals configured for different chip selections as mentioned above for SiT6503EB.
- The user can observe the output response of the signal collected from the phase noise analyzer and look into the summary file data for quick comparison.
- The user can perform phase noise analysis for MEMS Clock generators, MEMS Jitter Cleaner, and MEMS Network Synchronizers.
- The UI provides an option for users to download the analysis data for future reference.
¶ Document Links :
Cascade SiT9514x GUI Software Version 1.32.7 download link :
https://www.sitime.com/sites/default/files/gated/setup_Cascade-v1.32.7_Win10-SiTime.exe
GUI configuration link :
https://www.sitime.com/sites/default/files/gated/SiT6503EB-HW-User-Manual.pdf
Link to Board User manual link :
SiT6503EB Eval Board User Manual for Cascade SiT9514x devices
Link to Programmer User Manual link :
6506EB Programmer User Manual for Cascade SiT9514x devices
Link to datasheet link :
Cascade-SiT9514x-Product-Brief.pdf
Link to product page :
cascade-sit9514x-clock-system-chip-family
Product purchase link :
https://www.sitime.com/parametric-search?
