¶ SLG47105-HVPAK™ DC/Stepper Motor and LED Control Solution
¶ Introduction:

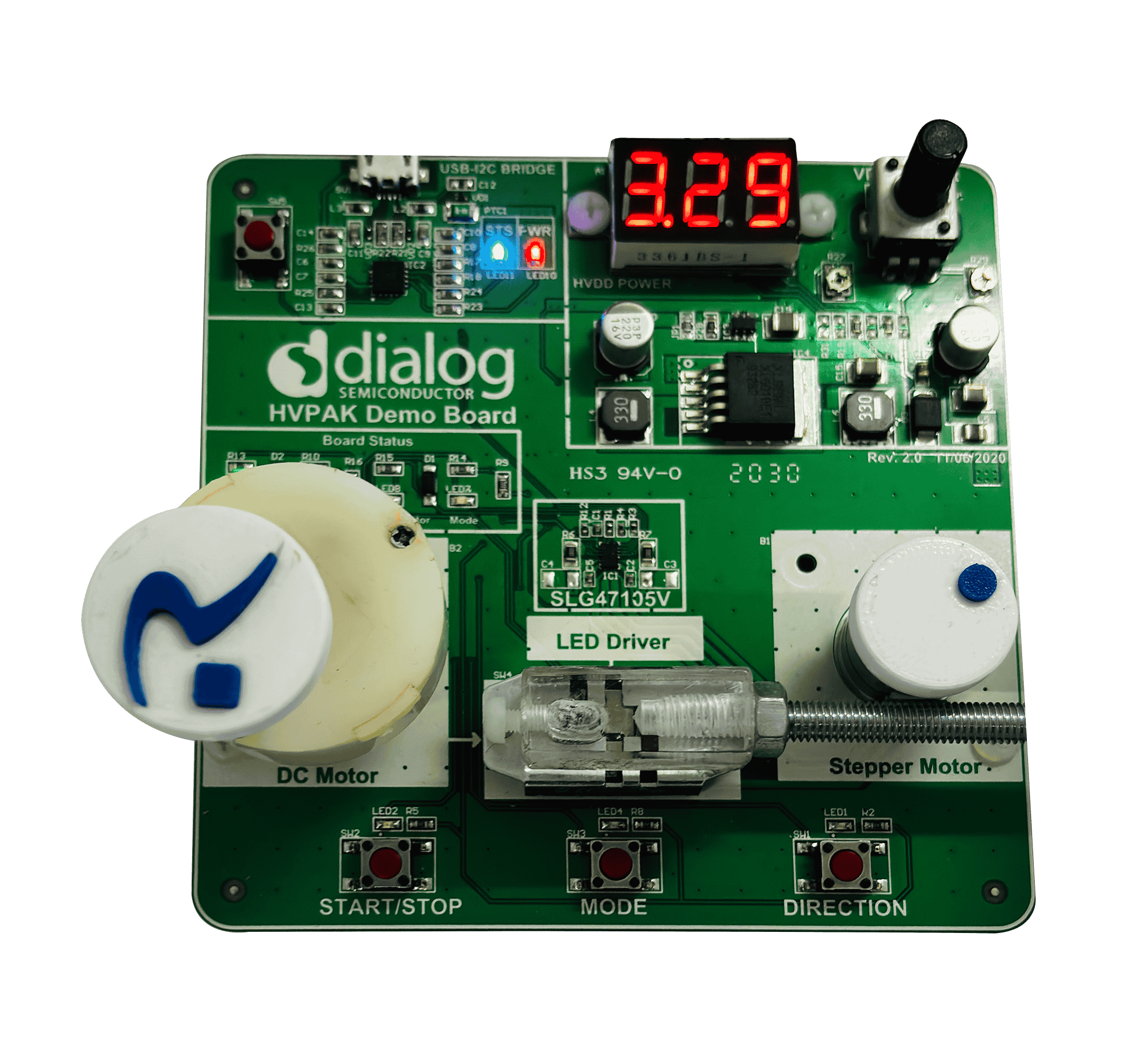

The Board is designed for hands-on and visually shows the SLG47105 chip's capability to handle both DC and Stepper Motors, as well as LEDs. The chip on the Board is already programmed with a versatile project, allowing the User to control different loads and switch between modes.
.png)
¶ Features:
- Differential Amplifier with Integrator and Comparator for Motor Speed Control Function.
- Two Current Sense Comparators with Dynamical Vref Mode.
- One Voltage Reference (Vref) Output.
- Serial Communications: I 2C Protocol Interface.
- Programmable Delay with Edge Detector Output.
- One Time Programmable Memory.
¶ Practical Application and Usecases:
- Smart Locks
- Personal Computers and Servers
- Consumer Electronics
- Motor Drivers
- Toys
- HV MOSFET Drivers
- Video Security Cameras
- LED Matrix Dimmers
¶ Lab Capabilities:
- DC Motor Control - User can start/stop the DC motor, change its direction (Clock Wise/Anti Clock Wise).
- Stepper Motor Control – User can start/stop the stepper motor, select step mode, and change its rotation direction.
- LED Control – User can turn the LED ON/OFF, change its color.
- I2C Command Display – User can only view the I2C commands being sent by the system but cannot modify or send new commands.
- Voltage Control – User can adjust the voltage between 3.3V and 12V to observe its impact on motors and LEDs.

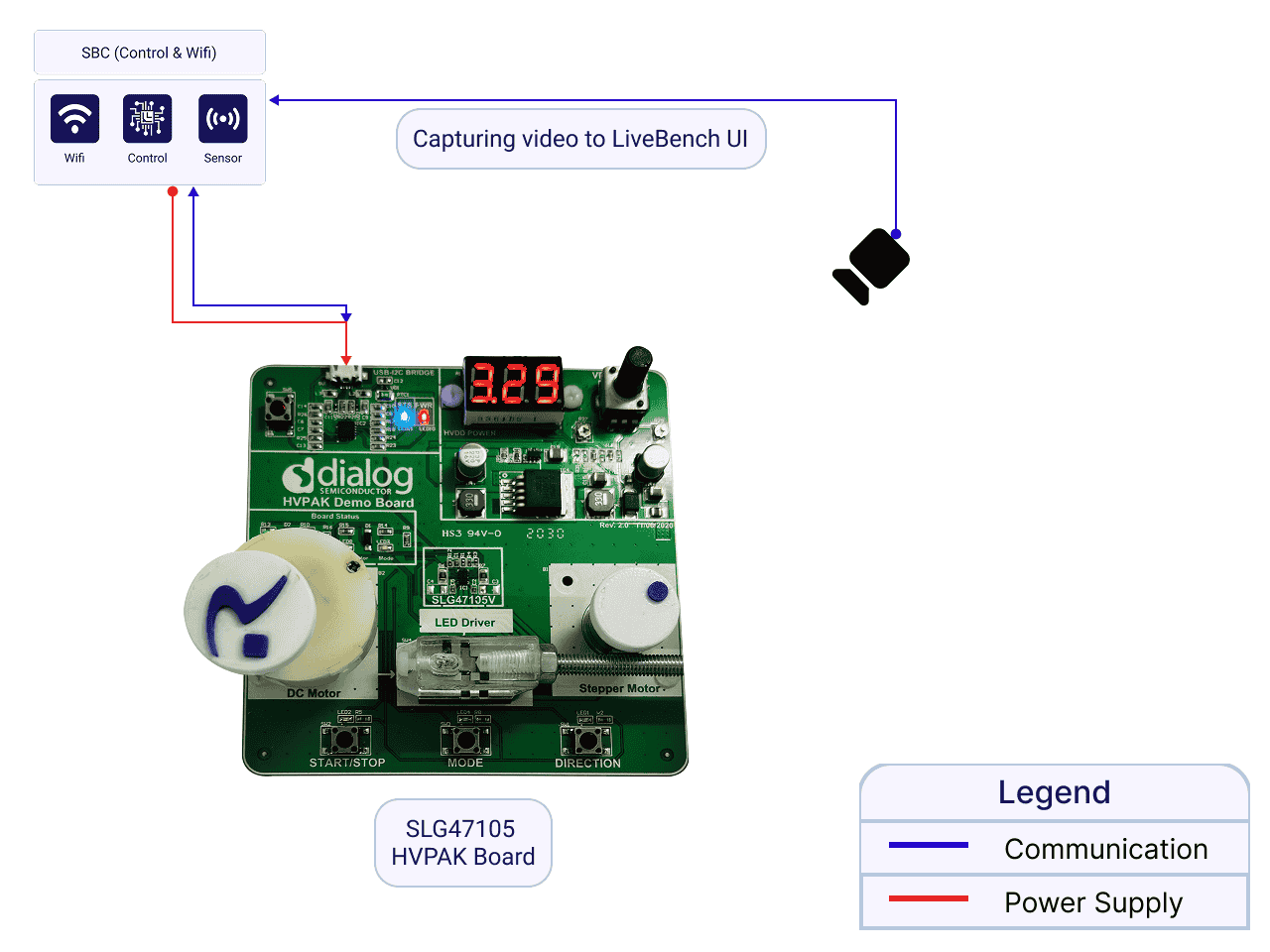

¶ Labsetup:
.png)

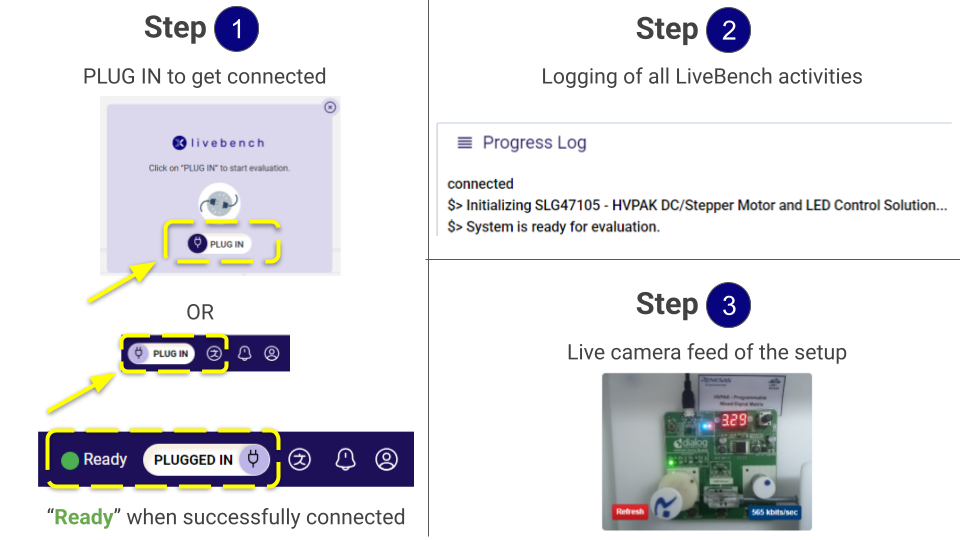

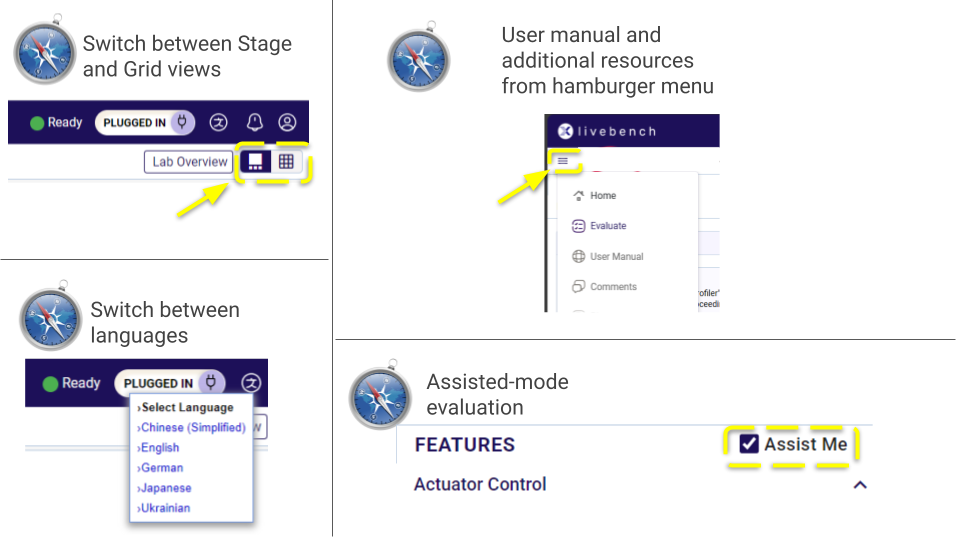

¶ How to use?
.png)
