¶ LiveBench for the Evaluation of SiT5501
¶ CONTENTS
- Introduction to Elite X (TCXO SiT5501)
- Lab Setup
- Key Features
- Applications
- Test Outputs
- Document links
¶ INTRODUCTION TO ELITE X(TCXO SiT5501):
The Elite X™ SiT5501 is a ±10 ppb Stratum 3E precision oscillator. Engineered for exceptional dynamic performance, this MEMS-based Super-TCXO is ideal for replacing larger and less robust quartz mini-OCXOs in edge networks. The SiT5501 is 2x smaller, 4x lower power and 30x more reliable than comparable mini-OCXOs while being fully compliant with the GR-1244 Stratum 3E oscillator specifications. By leveraging SiTime’s unique DualMEMS® and TurboCompensation® temperature sensing technology, the SiT5501 delivers the most stable timing in the presence of environmental stressors – airflow, temperature perturbation, vibration, shock and electromagnetic interference (EMI).
¶ LAB SETUP:

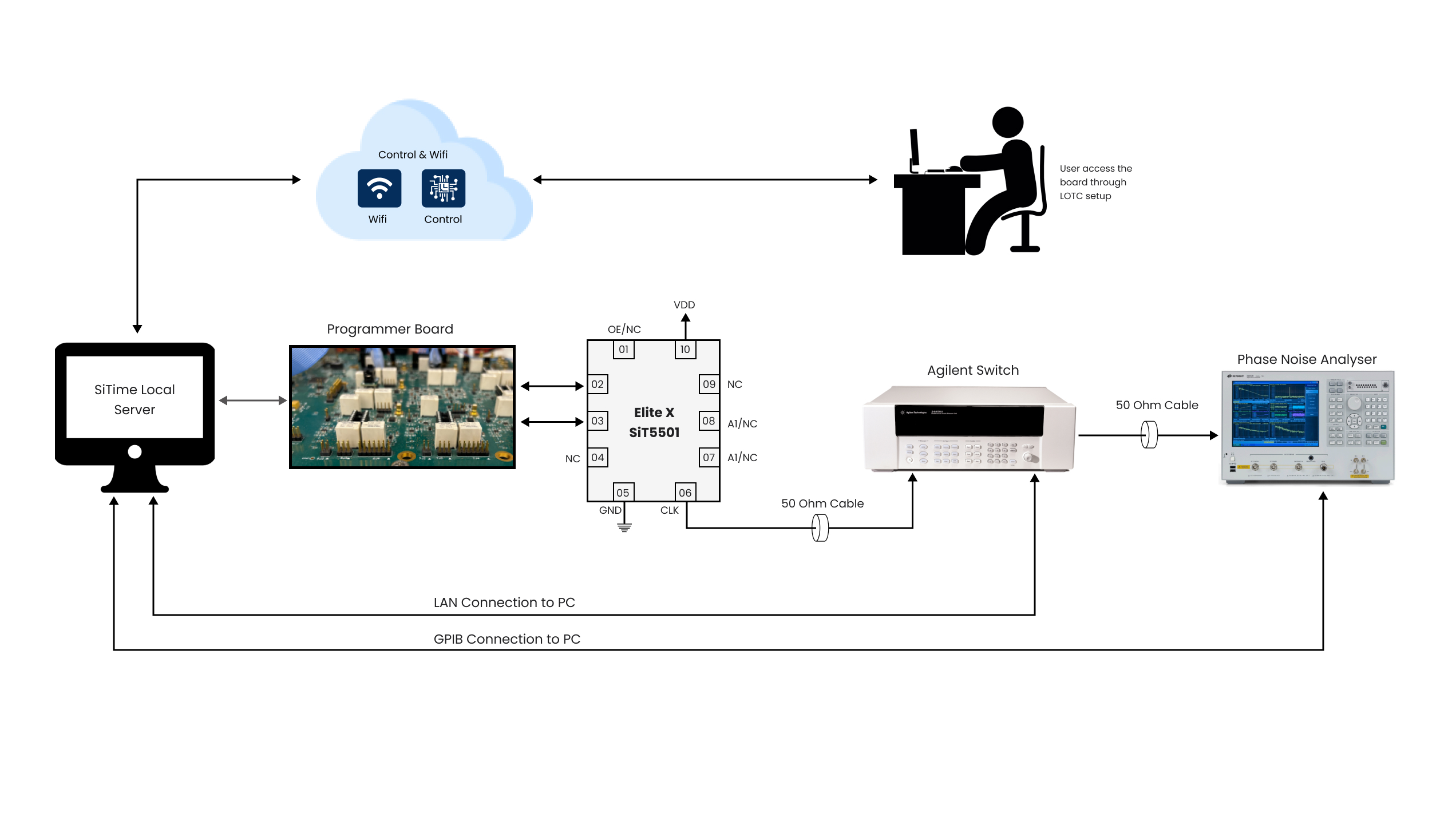

The Elite X SiT5501 precision oscillator solution lab setup consists of :
- A Personal computer to run the program for user configurations.
- A chip programming board installed with SiT5501 precision oscillator chip.
- A phase noise analyzer for the analysis of SiT5501 precision oscillator chip output.
- A switch will be provided to allow the users to access the board for different configuration or to queue the multiple test case analysis.
- Tenxer LiveBench server to provide online access to the SiTime lab setup.
¶ KEY FEATURES:
- Any frequency from 1 MHz to 60 MHz in 1 Hz steps
- Factory programmable options for low lead time
- Best dynamic stability under airflow, thermal shock
- ±10 ppb stability over temperature
- -40°C to 105°C operating temperature range
- ±0.3 ppb/°C typical frequency slope (ΔF/ΔT)
- 1.5e-11 ADEV at 10-second averaging time
- Digital frequency control up to ±3200 ppm
- No activity dips or micro jumps
- Resistant to shock, vibration and board bending
- On-chip regulators eliminate external LDOs
- 2.5V, 2.8V, 3.0V and 3.3V supply voltage
- LVCMOS or clipped sinewave output
- RoHS and REACH compliant
- Pb-free, Halogen-free, Antimony-free
- 7.0 mm x 5.0 mm ceramic package
- Contact SiTime for tighter stability, wider temperature, and alternate package options
¶ APPLICATIONS:
- 4G/5G radio, Small cell
- IEEE1588/SyncE boundary and grandmaster clocks
- Carrier-grade routers and switches
- Optical transport – SONET/SDH, OTN, Stratum 3E
- DOCSIS 3.x remote PHY
- GPS disciplined oscillators
- Precision GNSS systems
- Test and measurement
¶ TEST OUTPUTS:
- This design provides a provision for users to analyze the performance of precision oscillator.
- The user can observe the output response of the signal collected from the phase noise analyzer.
- The user can perform a phase noise analysis low jitter performance of MEMS-based Super-TCXO.
- The UI provides an option for user to compare the output result data with previous data if needed.
- The user can generate part numbers by selecting the chip configuration options for direct purchasing.
- The UI provides a download button to download the PNA result data.
